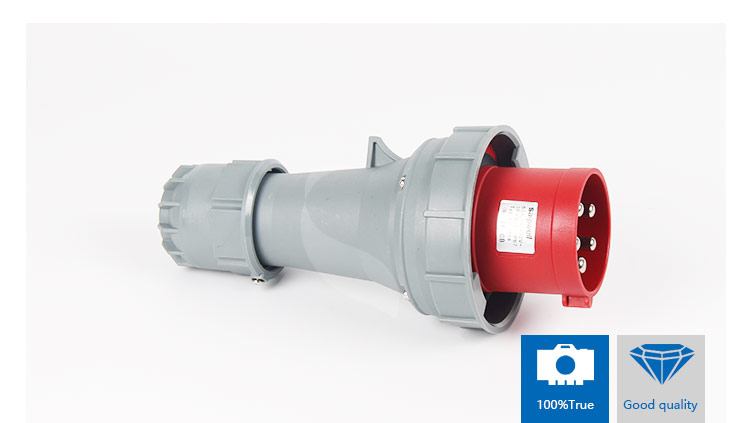

3 Phase Power Plug
Product Function
Saipwell industrial plugs are designed for cable-end or stationary connection of electrical equipment.
Technical Data
|
Model Number |
SP-1447 |
|
Number of Poles |
5 pins(4P+E) |
|
Contact Pin Material |
Nickel-plated brass |
|
Earth Position |
6h |
|
PowerFrequency |
50HZ – 60HZ |
|
Current Range |
125A |
|
Voltage Range |
380v-415v |
|
Protection type |
IP67 |
|
Certification |
CE, RoHS, IEC |
Product specification
| MODEL | Current | Poles | 110V/50a.60Hz 6H |
230V/50a.60Hz 6H |
400V/50a.60Hz 6H |
400V~400 3H |
| 16A | 3P | SP277 | SP278 | |||
|
4P |
SP280 | SP282 | ||||
|
5P |
SP286 | SP288 | ||||
|
32A |
3P | SP289 | SP290 | |||
| 4P | SP292 | SP294 | SP-2175 | |||
| 5P | SP298 | SP300 | ||||
| 63A | 3P | SP1570 | SP1571 | |||
| 4P | SP1108 | SP1110 | ||||
|
5P |
SP1112 | SP1114 | ||||
|
125A |
3P | SP3399 | SP3400 | |||
| 4P | SP1441 | SP1443 | ||||
|
5P |
SP1445 | SP1447 |
What is 3 phase power plug?
The industrial plug manufactured by Saipwell complies fully with the industrial standards of IEC309, EN6039, GB11918/11919, DIN49462/49463, and BS4343. Saipwell industrial socket outlets for panel mounting are high quality products for reliable and safe use in various environments.
Product Features
1. High resistance to harmful agents such as water, dirt, grease, chemicals.
2. High degree of protection against the ingress of solid matter or water through the use of improved sealing methods.
3. Outstanding conductive performance.
4. The cable diameter of 63A socket and 125aAsocket are 36.5mm and 50mm.
Application
The common use of industrial plugs is in the entertainment, broadcast, heavy & light industries.
FAQ
A.Q: May I have your catalogue?
A: Yes ,E-catalog could be sent to your E-mail. Or we would put the catalog into your goods.
B.Q: Could I put my logo on the label?
A: We provide professional OEM service.
C.Q: If I want to place an order, what’s the process?
A: Thanks. You can send inquiry to us by email, our office email saip@saipwell.com, we will reply within 24hrs. Thank you.
D.Q: If I want to Place an order, what’s the payment method you accept?
A: We accept T/T, PayPal, Western Union, L/C.
E.Q: How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL, FedEx, UPS,TNT. That’s a Door to Door service.
For big packages, we will send them by Air or By Sea. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.
