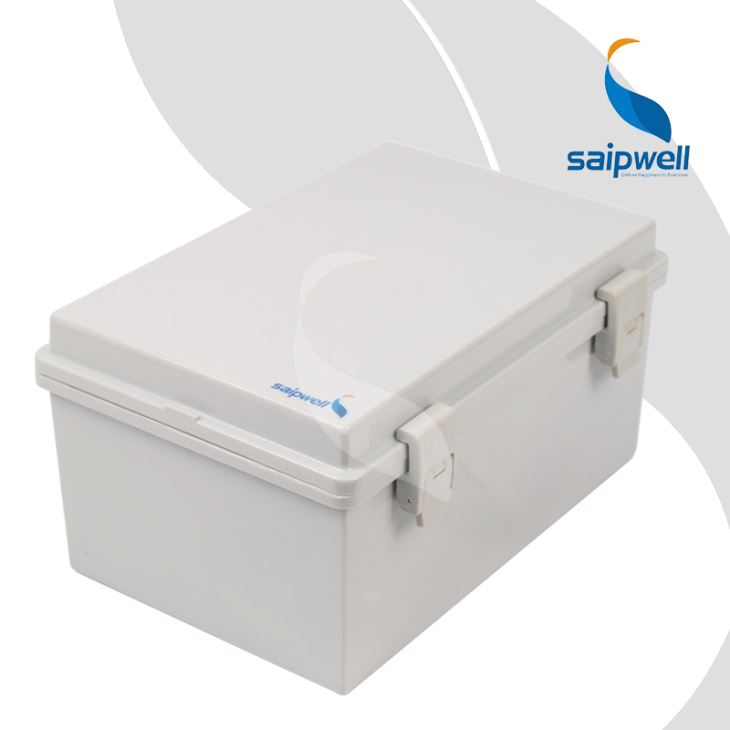

SP-MG Series ABS Enclosure with Hinge
Technical Data
|
Model Number |
SP-MG-203015 |
|
Size |
300*200*150mm |
|
Material |
ABS |
|
Color |
Grey |
|
Protect Grade |
IP66/IK08 |
|
Certification |
CE, RoHS |
Product specification
| Model(Solid cover) | WxHxD(mm) | Model(Clear cover) | WxHxD(mm) |
|
SP-MG-151509 |
150*150*90 |
SP-MT-151509 |
150*150*90 |
|
SP-MG-1016085 |
160*100*85 |
SP-MT-1016085 |
160*100*85 |
|
SP-MG-1217085 |
175*125*85 |
SP-MT-1217085 |
175*125*85 |
|
SP-MG-112009 |
200*110*90 |
SP-MT-112009 |
200*110*90 |
|
SP-MG-211609 |
210*160*90 |
SP-MT-211609 |
210*160*90 |
|
SP-MG-152010 |
200*150*100 |
SP-MT-152010 |
200*150*100 |
|
SP-MG-152013 |
200*150*130 |
SP-MT-152013 |
200*150*130 |
|
SP-MG-172510 |
250*170*100 |
SP-MT-172510 |
250*170*100 |
|
SP-MG-192813 |
280*190*130 |
SP-MT-192813 |
280*190*130 |
|
SP-MG-203015 |
300*200*150 |
SP-MT-203015 |
300*200*150 |
|
SP-MG-303014 |
300*300*140 |
SP-MT-303014 |
300*300*140 |
|
SP-MG-253615 |
360*250*150 |
SP-MT-253615 |
360*250*150 |
|
SP-MG-304017 |
400*300*170 |
SP-MT-304017 |
400*300*170 |
|
SP-MG-374818 |
480*370*180 |
SP-MT-374818 |
480*370*180 |
|
SP-MG-405020 |
500*400*200 |
SP-MT-405020 |
500*400*200 |
|
SP-MG-426222 |
620*420*220 |
SP-MT-426222 |
620*420*220 |
What is Waterproof enclosure?
Weatherproof enclosure box usually uses outdoor, we can install switch, terminal, push-button and other waterproof electric function parts in the box, and then they can be use for outdoor to control or supplier electric or signal. Weatherproof enclosure box have IP44, IP55, IP65, IP66, IP67 and IP68.
Product Features
1. Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 specifications.
2. Silicone rubber gasket makes this ideal for outdoor use in a wide range of adverse conditions.
3. Cellular mounting base-plate is optional.
4. Door can be hinged on the left or the right side.
5. Self-extinguishing materials to ASTM D635
6. Light-weight and easy to install
Application
It is convenient for the general & mechanical usages such as terminal box, measuring equipment box, gauge box, power distribution, control box, etc.
FAQ
A. How long is your delivery time?
A: We have a lot of waterproof box in our warehouse as stock. We can send the stock products in 3-5 working days.
If no stock, or not enough stock, we will check the delivery time with our production department. and then reply you in 24 hours.
B. What’s your payment terms?
A: Order amount more than USD$10000, we usual accept 30% T/T payment in advance, and the balance payment before shipment, terms could change according to our business relationship. Less than USD$10000, , the payment will be 100% T/T in advance
C. Can I become an Agent / Dealer of Saipwell products?
A: Welcome! But please let me know your Country/Area first, We will have a check and then talk about this. If you want any other kind of cooperation, do not hesitate to contact us.
D. I can’t find the product on your catalogue, can you make this Waterproof box for me?
A: Our catalogue shows most of our products, but not all. So just let us know what kind of waterproof box do you need, and how many do you want, better send us your design draws of the box. If we do not have it, we can also design and make a new mould to produce this waterproof box. For your reference, making a ordinary mold will take about 35-45 days.
E. What’s your main market?
A:Our market allover the world, main market in Europe and America..
F. Can I get a waterproof sample for reference?
A:we are gald to send samples for your testing, but you need to pay the express cost.
